TiESFONG M10max 2K 1440P Dash Cam for Car DVR 4CH 360 Camera 24H Parking Monitor & GPS Night Vision Auto Video Recorder 256Gmax

SPECIFICATIONS

Brand Name: TiESFONG



Frames Per Second: 25

Hign-concerned Chemical: None

Chipset Manufacturer: MSTAR

Assembly Mode: Portable Recorder

Cable Length: 3M

APP Compatibility: YES

View angle: 4*140°

Number Of Lenses: 4

Screen Ratio: 4:3

Interface: bluetooth

Interface: WI-FI

Interface: Micro SD/TF

NightShot Function: YES

Power Source: Corded Electric

Video Code: H.265

Original Package: YES

Loop-Cycle Recording Feature: YES

Audio Recorded: YES

Camera Resolution: 2560x1440

Special Features: G-Sensor

Special Features: motion detection

Special Features: sd/mmc card

Special Features: Anti Fog

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Special Features: bluetooth

Special Features: Parking Monitor

Built-in Screen: YES

Battery Type: button cell

Video Format: MP4

Touch Screen: no

Data Storage Capacity: Memory Card

Aperture: F1.6+F1.8

Item Type: Car DVR

GPS logger: Internal

Battery: built-in

Maximum Video Frame Rate: 25

Display Size: 3"-5"

Input/Output: TYPE-C

Battery Capacity: 1 mAh

Certification: CE

Certification: FCC

Certification: RoHS

Memory Card Required Reding Speed: Class 10

OEM NO.: For Universal Cars Dash Cam. Newest 4 Lens Recorder

Working Temperature: -20°C~65°C

Imaging Sensor: GC4653

OSD Language: Arabic

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: DUTCH

OSD Language: English

OSD Language: FRENCH

OSD Language: german

OSD Language: Italian

OSD Language: japanese

OSD Language: KOREAN

OSD Language: Portuguese

OSD Language: RUSSIA

OSD Language: Russian

OSD Language: Spanish

OSD Language: THAI

OSD Language: Turkish

Pixels: 1200Mega

Rear Camera: YES

Display: IPS

Max External Memory: 256G

Dash Cam Model: TiESFONG 2K M10max

Input: 5V / 2.5A

Full Kit Accessories: M10max Device + S20 Rear Cam (Optional) + Charger cable + Radar & Hardwire Kit (Optional) + TF Card (Optional) + Free Gift

Image Sensor: GC4653

What are the requirements of the car camera for the memory card?: Cam need Class 10 U3 or above TF card for storage video

Fearture: 24H Parking Monitor / Loop recording / Built-in G-sensor / Built-in WIFI / Night Vision and so on

How many Channel in this Dash Cam?: 4 Channel

How much running memory does this car dvr have?: 2GB

The current and voltage supported by the cam: Cars that support 12V-24V

Whether the recorder can record sound?: Yes, the recorder has a built-in microphone and supports sound recording functions.

How to wire parking monitoring?: Hardwire Kit requires wiring from the car fuse box

Does the supercapacitor support charging?: Super capacitor does not support charging.

Choice: yes

semi_Choice: yes





















































About the package contents:（Please confirm the package you want.）

Car charger version:

（With car charger cable, need to be connected to the cigarette lighter car charger port）

Only driving recorder, it cannot be parked for monitoring after turn off your car.

Parking Monitoring version:

（With Radar & Hardwire Kit, you need to take the power from the fuse box of the car）

Driving Record + Parking Monitoring



Package contents


—— TiESFONG Newest Update 2K M10max 4-CH Dash Cam——



TiESFONG M10max 2K 1440P Dash Cam for Car DVR 4CH 360 Camera Support 24H Parking Monitor & GPS Night Vision Auto Video Recorder Support 256Gmax







All safety conditions inside and outside the car are guaranteed with 4 Channel record.

24H Radar Parking Monitoring / Built-in WIFI / G-Sensor / Super IR Night Vision / WDR Function / Loop Recording





Stable Performance / Clear Recording / Diversified Functions



Unique Design

2K-M10max is a 3 Channel all-in-one recorder,

which supports adding a rear camera to form a four-lens dashcam.

The M10-4 Channelof TiESFONG is the first in the industry to share a chip for four lenses to operate stably.

The 2K-M10max is an upgrade to the resolution of the main cam (Front Cam) from the M10.



Chip: MSTAR 88Series

Sensor:Galaxy Core GC4653+GC2053

4 Channel Recording at the same time

The resolution of 2K-MAX-4 Channel can reach 2K 1440P+3*1080P when it recording at the same time.

And all 4 Channel can be displayed on the mainframe at the same time.

Multiple Angle camera provides more comprehensive security for your car.



The main lens (Front Cam) —— 2K 2160*1440P / 400W pixel and F1.6 aperture

The other lens (Left / Right / Rear Cam) —— 1960*1080P / 200W pixel and F1.8 aperture

Superior Night Vision

The 2K-M10max-4 Channel offer the latest built-in highly sensitive night vision image sensor,

which will automatically compensates for light/darkspots and balances exposure,

makes all scene details are recorded vividly.

Even in low-night conditions, it capture clear videos and photos in your driving or parking moment.



WDR wide dynamic night vision——Within the Front and Rear cameras

Four infrared night vision lights——Within the Left and Right cameras. (total 8IR lights)

Rotatable Lenses & 140° wide Angle

All 4 Channel can rotate back and front, left and right, and adjust other recording angles at will by yourself.

And all 4 Channel are for 140˚wide-angle lens.

The 2K-M10max-4 Channel dash cam can capture more angles and provide more evidence at critical moments.

24-H Radar Sensing Parking Monitoring

The 24-hour radar sensor parking monitoring mode will save a lot of power

than the mode that has been recording for 24 hours after the ignition is turned off.



After turned off the car, the working principle of the radar sensing mode:

Within the sensing range of the radar, the radar will start the machine to record when it senses a moving object.

Until one minute after detection, there is no moving object, the machine will stand by;

If there is a moving object within a minute, the machine will continue recording.



Note:

With parking monitoring, it is necessary to use the electricity of the car battery

after the car is turned off.

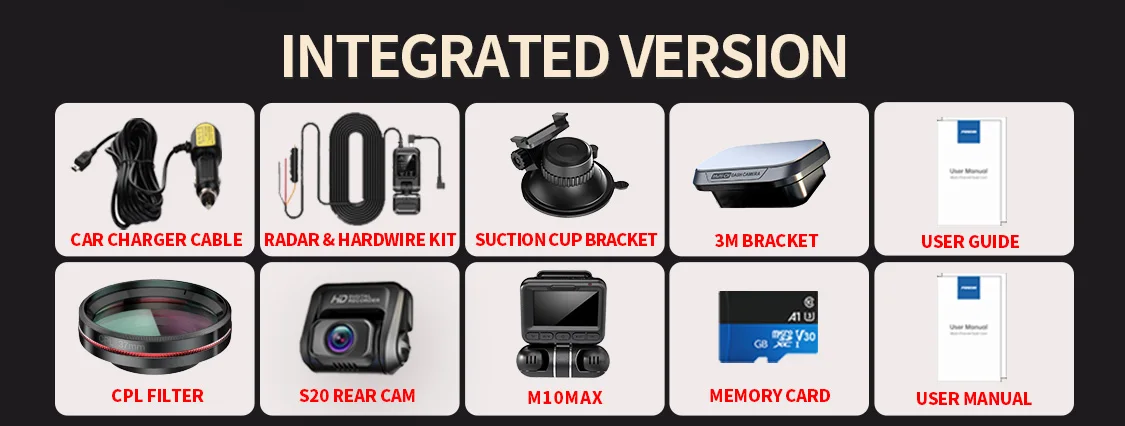

(Parking Version and Integrated Version Optional)

Low-Voltage Protection

The Hardwire Kit has low-voltage protection.

When the battery is lower than 11.8V/12V/12.2V,

the dash cam will automatically power off, and the battery will not be used anymore.

Built-in GPS(Optional)

Monitors and displays real-time trip data including time, speed (km/h, mph), and coordinates.

Tracks the exact location of an accident if one should occur, crucial for roadside assistance and insurance claims.



Note:

· Need to select built-in GPS package

· Remote location of cars is not supported.

CPL Filter

(Optional)

CPL Optical Filter reject reflections from glass.

Eliminate the reflection in the car center console, improve saturation.



PS: Choose the integrated version if required.

G-Sensor & Loop recording

When the memory card reaches its maximum capacity,

the oldest unlocked footage will be overwritten automatically to ensure infinite loop recording.

Supports 1/2/3 minutes loop recording and class 10 or higher TF card up to 256GB.



The 2K-M10max-4 Channel dash cam will automatically lock the current recording video

as proof of an incident once the built-in G-sensor detects a collision.

Built-in WIFI

Use the TSCAM App to view and manage dash cam recordings instantly on your iOS and Android devices.

Connect via Wi-Fi & download your recorded videos directly to your smart phone

and then easily share these on social media with friends and family.



Video of wifi connection operation: https://youtu.be/h6PZmBYHLhM



PS: WIFI doesn't support remote monitoring.

Super Capacitor

Equipped with super capacitor instead of traditional lithium battery,

which features a longer lifespan and extreme temperature resistance,

and also can adapt well to the weather in many country.



PS：

1. The super capacitor is only used as a storage setting and does not support charging.

2. A power cord needs to be connected for the machine to work.
